Transparent Material Inspection

Transparent Material Inspection (DPI)

+17,000

Systems around the world

No.1

Market Position

250+

Koh Young systems in the UK

+50%

Global Market Share

KOH YOUNG - Transparent Material Inspection (DPI)

Koh Young's DPI range enables a quantifiable measurement approach to transparent material inspection across many dispensing related processes, opening up a new way to inspect, optimise and maintain the way coatings are applied to PCBAs.

Full range of demonstration equipment available for sample validation.
Inspecting area, thickness, missing, cracks, bubbles, delamination and foreign material.
Inspection of acrylic, silicone, polyurethane, water-based, UV-Cure and hybrid materials.
Non destructive automated inspection of materials.
Performs defect diagnosis through measurement-based data and eliminates the causes of possible errors
Powerful 3D solder joint inspection
Neptune T (Batch), Neptune C and Neptune C+ (Inline) available

Learn More

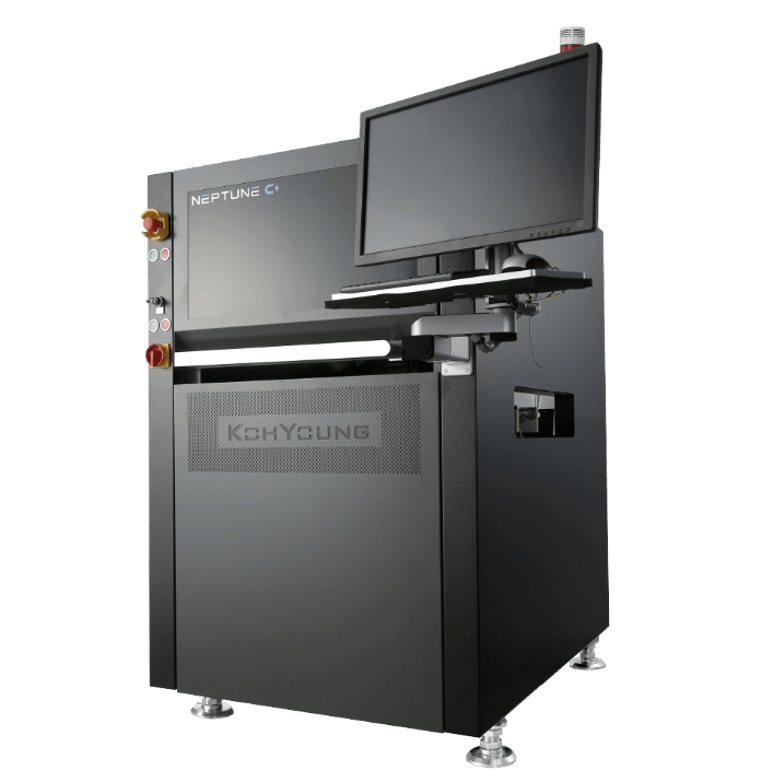

Neptune C+

Revolutionary True 3D In-line Dispensing Process Inspection (DPI) with a Thickness Measurement Solution based on Patented Technologies

Most optical systems use UV light to inspect the surface for presence and gauges to measure material thickness in a particular spot, which does not provide the accuracy and repeatability needed. Inspecting transparent materials proved to be a challenge for traditional laser-confocal or electron microscope systems that only measure three-dimensional shapes.

Koh Young’s revolutionary Neptune C+ provides the ultimate solution to these challenges.
Button

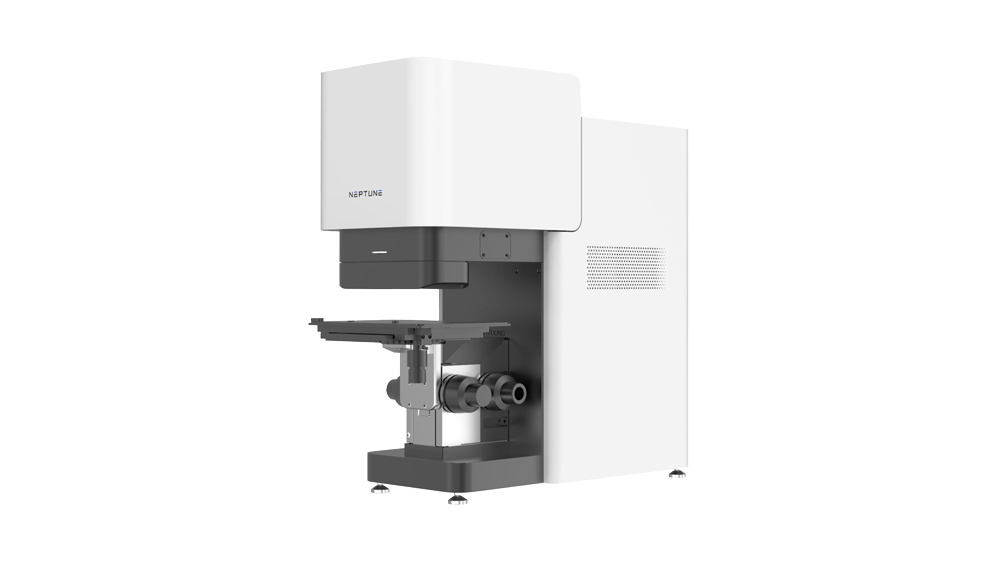

Neptune T

The Industry’s First 3D Optical Measurement Instrument for Transparent Materials

Most optical systems use UV light to inspect the surface for presence and gauges to measure material thickness in a particular spot, which does not provide the accuracy and repeatability needed. Inspecting transparent materials proved to be a challenge for traditional laser-confocal or electron microscope systems that only measure three-dimensional shapes.

Koh Young’s revolutionary Neptune T provides the ultimate solution to these challenges.

Button

Neptune uses LIFT Technology

Laser Interferometry for Fluid Tomography

Interferometer: Interferometry is a family of techniques in which waves, usually electromagnetic waves, are superimposed, causing the phenomenon of interference, which is used to extract information. (Measuring or imaging by analyzing the interference signal of light reflected or scattered from the sample.)
