2D THT Inspection (AOI)

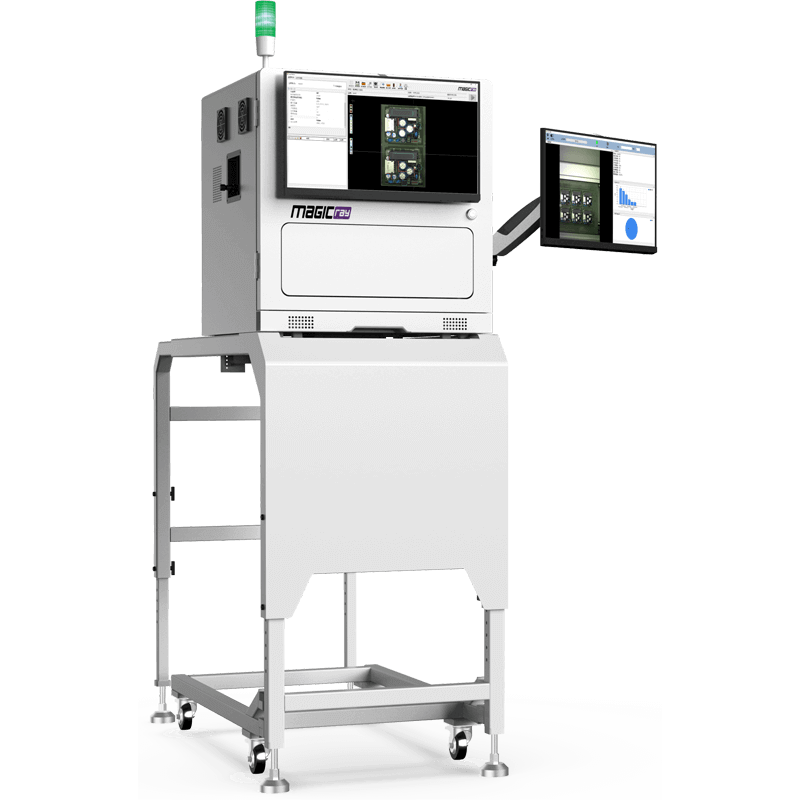

Pre-Reflow AOI Solution

It can easily be put into use in any existing production line without the need for a line re-layout.

Through the use of AI, programming is made simple. An inexperienced operator can generate a stable program within minutes.

Support high-mix products changeover. Barcode identification for traceability.

The machine will trigger the voice and buzzer alarm when defect is detected.

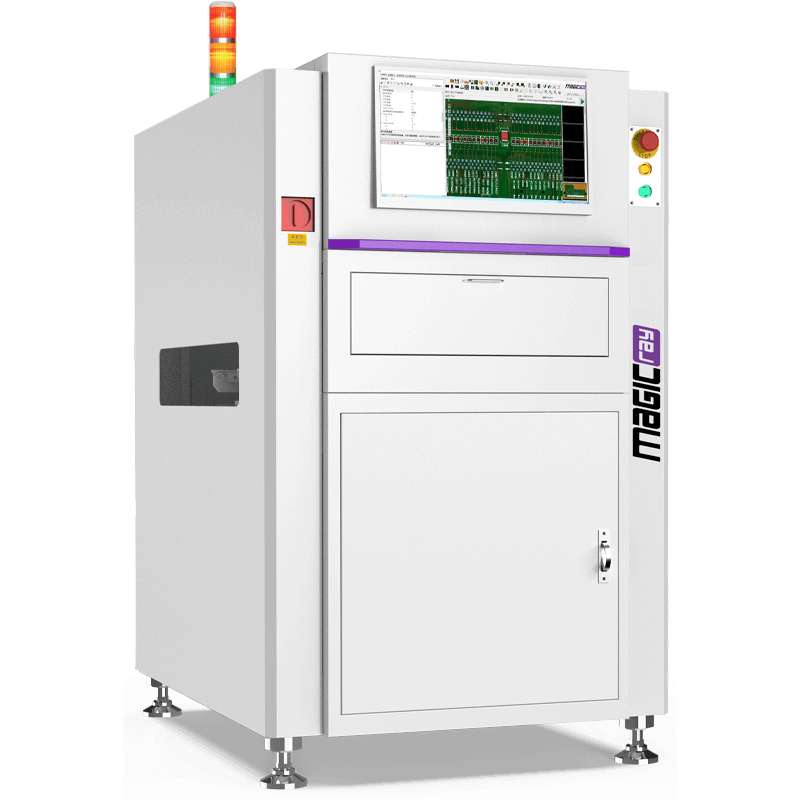

Post Reflow Solution

A unique feature is its ability to inspect on both sides of the pcba simultaneously saving production floor space and investment.

Pulley type conveyor can be selected vs the standard Belt Type , the former more resistant to high temperature, dirt and heavy loads.

MagicRay’s proprietary Solder Pad Positioning Algorithm and FOV Assisted positioning makes detection of components more accurate.

Post Reflow Solution

Powerful algorithm logic for post wave soldering inspection of SMT and odd shape components.

Fast programming, auto-generate thru hole inspection window with one-click function.

Automatic compensation for PCB deformed by high temperature effects makes our machine just as suitable for FPC.

Optical fiber sensor is featured to trigger board drop alarm.
