3D CT (Computerized Tomography) Xray System

3D CT (Computerized Tomography) System

The 3D CT is a method of acquiring a three-dimensional image by mathematically combining two-dimensional projection images of an X-ray continuously shot by rotating the sample to be measured 360 degrees and analyzing the image. Performing a precise analysis of the analytical object, such as three-dimensional comparison analysis, quantitative failure analysis of internal defects, quantitative analysis of thickness indices in 3-D and 3-D design verification, Can be professional inspection equipment. In addition to statistical analysis through standard vs. actual data analysis, it is possible to extract CAD data using surface information by extracting design data. This means that not only internal defect analysis but also various analysis can be done through 3D design verification. In addition, Techvalley's 3D CT equipment provides a virtual scan function that moves samples larger than the size of the detector, moving them vertically and horizontally, and composing them into one 3D image.

Learn More

3D CT

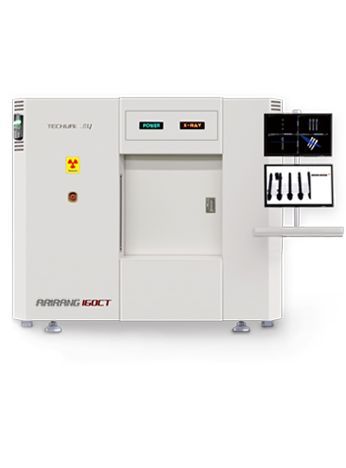

TVX-IL series provides the world's best CT analysis function with Smart 3D CT inspection equipment made by the best CT development specialist group in Korea. Basically, the structure of the installed software and equipment is the same, but the model is divided according to the output of the X-ray source. Various sizes of samples can be inspected and internal void automatic grade analysis tool can be provided to standardize the inspection of bubbles by anyone. Techvalley provides customers with the world's best CT analysis functions, and is the first in the industry to offer the Korean manual (VG Studio) of analysis software.

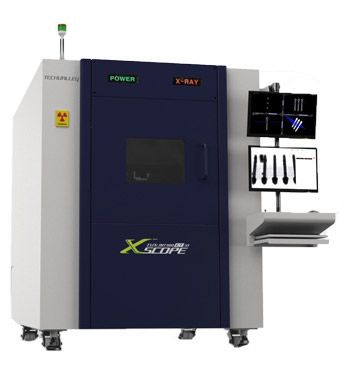

TVX-IMT series is a specialized Micro 3D CT device designed and manufactured through Techvalley technologies and abundant field experience. It is widely used not only for industrial use but also for research and development. Due to the characteristics of Micro CT, it is optimized for small precision components and has exclusion function for image distortion and image superimposing. It is a high-tech equipment that can not be designed, manufactured and delivered unless its technology is supported because it uses high-magnification, high-precision X-ray image. Techvalley has a lot of experience in government offices, universities, research institutes, and other companies.
