Conformal Coating, Dispensing & Curing

Inline Conformal Coating & Dispensing

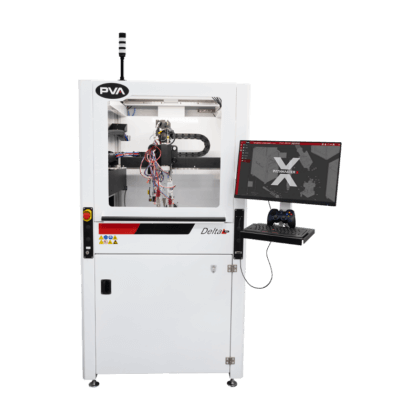

The Delta 8 is a flexible robotic conformal coating/dispensing system that is ideal for selective coating, potting, bead, and meter-mix dispensing applications. Conceptualized for maximum flexibility, the system can also be configured for custom assembly applications. Maintaining the preferred features of previous workcells, the Delta 8 features a robust overhead three-axis motion platform suitable for inline or batch operations. Improved structural and gantry rigidity have been added for robustness and easier access.

The Delta 8 has many options and integrated features including:

Patented servo-controlled optional four-axis motion featuring valve tilt and rotate

Closed-loop process control throughout gantry system

Multiple dispensing applications or materials in one cell

Onboard PC for unlimited program storage

Exclusive PVA programming software designed for the Delta 8

Inline Conformal Coating & Dispensing

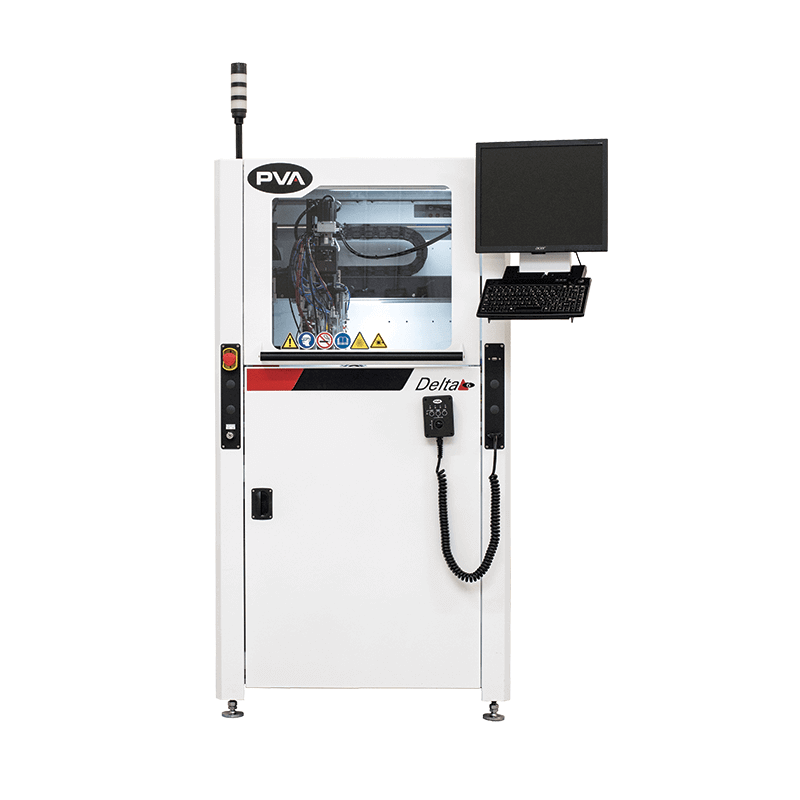

The Delta 6 is a new, reimagined flexible robotic conformal coating/dispensing system that is ideal for selective coating, potting, bead, and meter-mix dispensing applications. The Delta 6 features a robust overhead three-axis motion platform suitable for inline or batch operations.

While maintaining the preferred features of previous workcells, the Delta 6 has been designed with a slimmer footprint, improved structural and gantry rigidity for robustness, and easier access.

The Delta 6 has many options and integrated features including:

Robotic system repeatability of 25 microns

Patented servo-controlled optional four-axis motion featuring valve tilt and rotate

Closed loop process control throughout gantry system

Multiple dispensing applications or materials in one cell

Onboard PC for unlimited program storage

Exclusive PathMaster® programming environment

Benchtop Conformal Coating & Dispensing

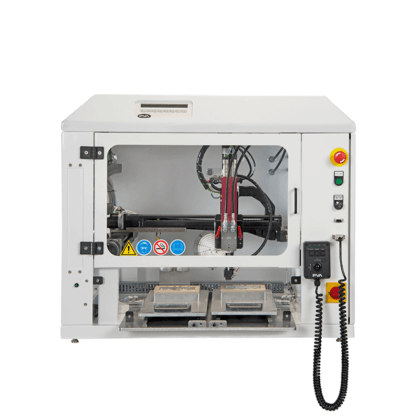

The PVA350 is a flexible three or four-axis robot that is suitable for virtually any benchtop of laboratory selective coating and automated dispensing application. The PVA350 features a robust overhead motion platform employing brushless DC servo motors and precision ball screw slides. Encoder feedback on all axes assures a closed-loop process that is consistent and reliable. The PVA350 platform is enclosed for added protection during spray applications.

The PVA350 has many options and integrated features including:

A compact, tabletop design that favors portability

Large work area

Optional four-axis tilt and rotation motion

Optical encoder feedback on all axes of motion

Coordinated motion in all axes simultaneously

RS232 communication port

Front panel LCD screen and remote trackball teach pendant

Exclusive PathMaster® programming environment

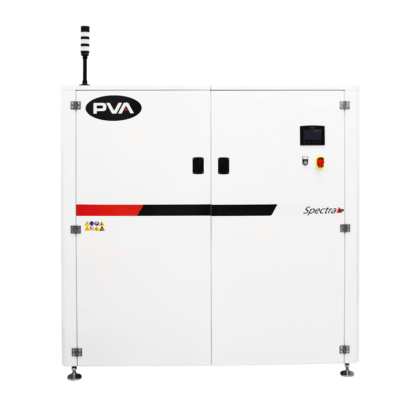

Spectra UV Curing System

Spectra features Fusion® UV lamps by Heraeus to initiate fast ultraviolet light polymerization of adhesives and coatings in an efficient inline process. Various beam widths are available to accommodate a wide range of substrate dimensions.

Spectra comes complete with:

OIT touch screen interface

Single or double-sided processing

Dual zone conveyor with configurable cure and transfer speeds

SMEMA edge carrying chain conveyor

SMEMA communications interface

Maximum 4 in top and bottom side component clearance

Standard hand crank conveyor adjust and optional automatic conveyor width adjust

Fully enclosed for clean and quiet operation

Large access doors to all critical areas

Inlet air filtration system

Rail expansion compensation
